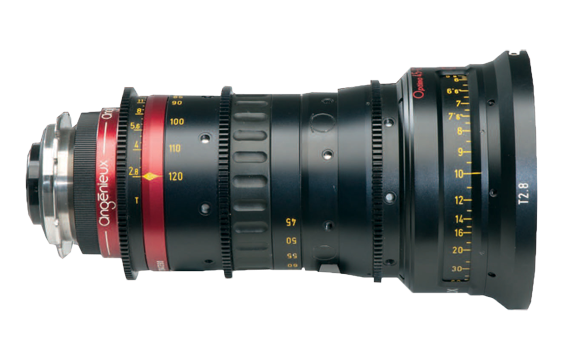

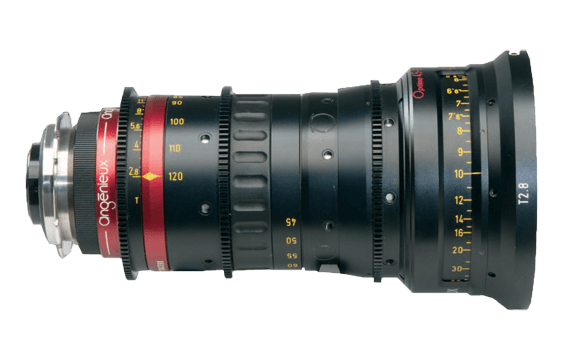

Angenieux 45-120 Cine Zoom

45-120
The focus ring on the 45-120mm focus ring has a 320° focus rotation with over 50 precise focus witness marks and minimal breathing. Its compact size makes it ideal for use in handheld, crane, and steadicam situations.
FEATURES:
• An extremely fast aperture speed of T2.8
• 320° focus rotation with over 50 witness marks
• A superior level of optical performance across the entire range
• No ramping, minimal breathing
• Calibrated focus marks available in feet or meters (easily interchangeable focus ring)
• Available in PL mount
SPECIFICATIONS:
- Focal Length: 45-120mm
- Zoom Range: 2.7x
- Geometric Aperture: f2.6
- Photometric Aperture: T2.8
- Length: 203mm
- Front Diameter: 114mm
- Weight: 4.3 lbs. (1.95kg)

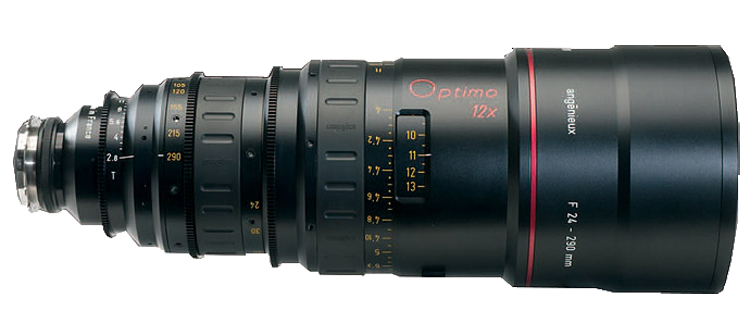

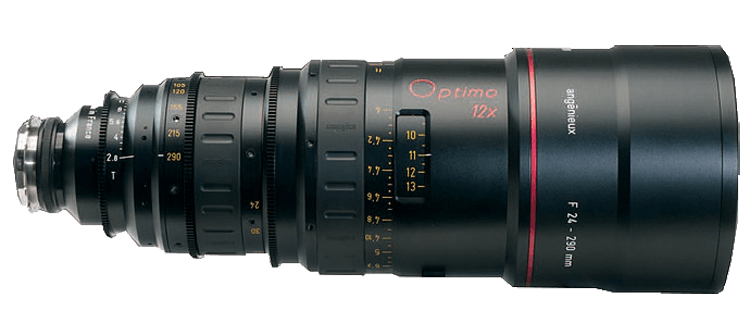

Angenieux 24-290 Cine Zoom

24-290
This lens produces impressive contrast and color reproduction that rivals the highest performing prime lenses.
FEATURES:
• An extremely fast aperture speed of T2.8
• Impressive contrast and color reproduction
• A superior level of optical performance across the entire range
• No ramping, no breathing
• 327° focus rotation with over 25 witness marks
• Available in PL mount (PV and Canon conversion mounts available from partner companies)
SPECIFICATIONS:
- Focal Length: 24-290mm
- Zoom Range: 12x
- Geometric Aperture: f2.5
- Photometric Aperture: T2.8
- Minimum Object Distance: 4′ (1.22m)
- Weight: 24.25 lbs. (11kg)

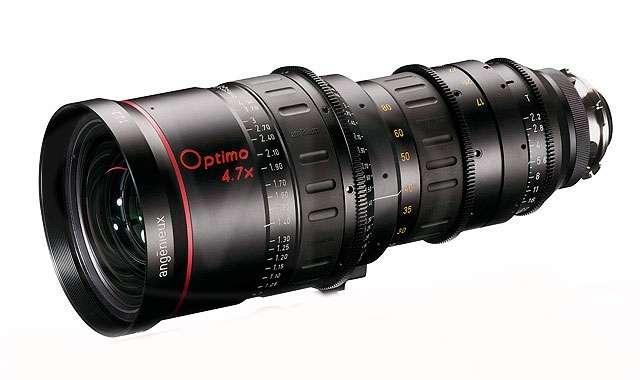

Angenieux 17-80 Cine Zoom

17-80
This lens produces impressive contrast and color reproduction that rivals the highest performing prime lenses.
FEATURES:
• An extremely fast aperture speed of T2.2
• Impressive contrast and color reproduction
• A superior level of optical performance across the entire range
• No ramping, no breathing
• 329° focus rotation with over 25 witness marks
• Available in PL mount (PV conversion mount available from partner companies)
SPECIFICATIONS:
- Focal Length: 17-80mm
- Zoom Range: 4.7x
- Geometric Aperture: f2
- Photometric Aperture: T2.2
- Minimum Object Distance: 1’9″ (.6m)
- Weight: 11 lbs. (5kg)

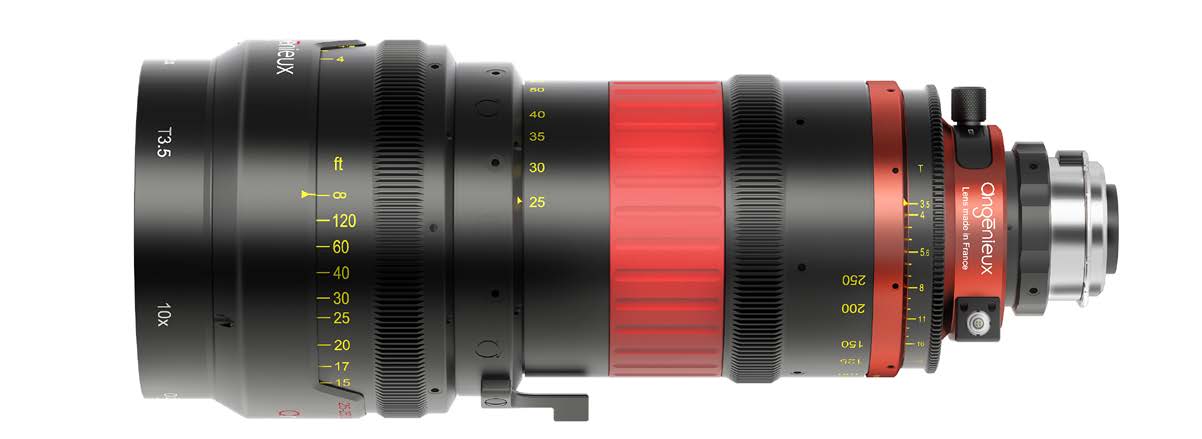

Angenieux 25-250 HR Cine Zoom

25-250 HR
- Optimized optical quality with low chromatic aberration, telecentricity and low distortion, ideal for high performance S35 digital cameras
- Internal focus with minimal breathing
- Image circle of 31.4mm diagonal for perfect illumination of the S35 sensors
- Robust and precise zoom and focus mechanics with Angénieux rod guiding system design
- Precise focus marks with easily interchangeable focus scale ring from feet to meters
- Integrated filter holder for standard screw-in filters
- Integrated net holder
- Optional front protective glass
- Designed for easy maintenance

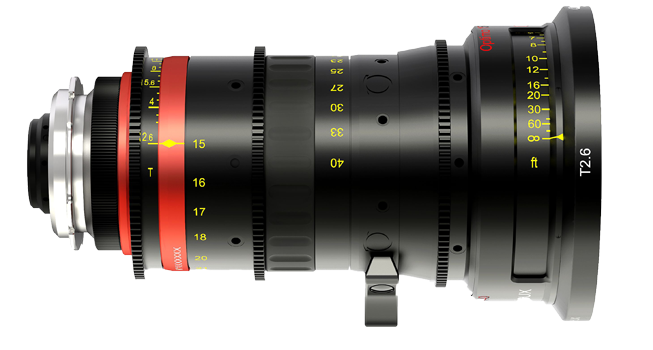

Angenieux 15-40 Lightweight Cine Zoom

15-40 | MAIN FEATURES
- Superb image quality from T2.6 open aperture
- Compact and very light (1.92 kg / 4.2lbs)
- Identical center of gravity on all Optimo lightweight zoom lenses enable quick lens interchange
- Perfect homogeneity of color, contrast and resolution. Low distortion
- No ramping, minimal breathing, very fast for 2.7x zoom ratios
- Close focus of (2ft / 0.6m) facilitates shooting in tight locations
- Internal focus, internal zoom, constant lens volume
- Precise and ergonomic focus ring with scale rotation of 320 degrees & over 50 focus marks.
- Interchangeable focus scale ring from feet to meters
- Adapted to extreme production environments (back focus temperature compensation system from -20°C to +45°C)
- Compatible with Optimo 1.4x and 2x extenders
21-58mm T3.7 (with 1.4x)
30-80mm T5.2 (with 2x) - Image coverage: S35+ (Ø 31.4 mm), expanded to Ø 35 mm when used with Optimo extenders
- Available in PL mount. Easily interchangeable to Panavision, Canon EF, mounts
- Compatible with ASU servo unit (integrated motors for FTZ remote control through industry standard control systems)

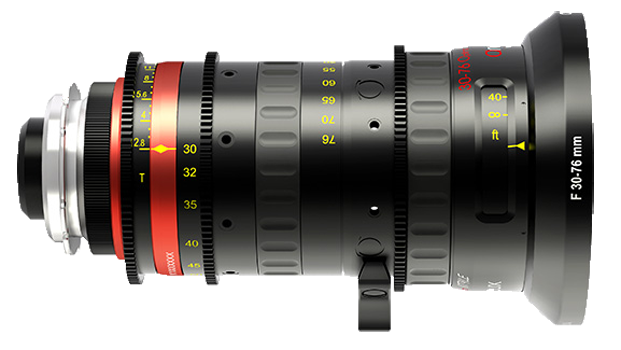

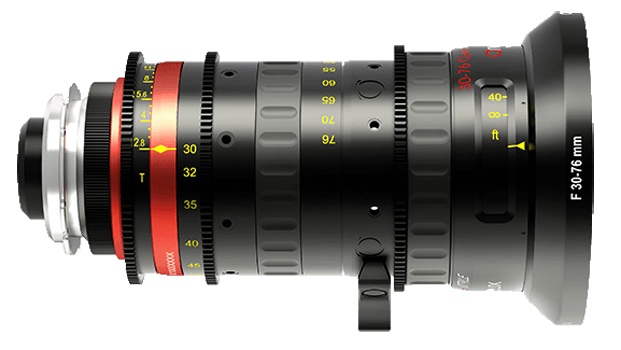

Angineux 30-76 Lightweight Cine Zoom

30-76 | MAIN FEATURES
- Constant T2.8 across entire zoom range
- Well controlled distortion with no breathing
- Compact and very light (1.92 kg / 4.2 lbs), ideal for handheld, Steadicam, compact gimbals
- Superb image quality from open aperture, considered as “variable primes”
- Color reproduction matches the highly acclaimed OPTIMO lens series
- Internal focus, internal zoom no change in lens size
- Precise and ergonomic focus ring with zoom scale rotation of 320 degrees & 20 focus witness marks (no interchangeability of focus rings from feet to meters)
- Compatible with Angénieux Servo Unit (integrated motors for FTZ remote control through industry standard control systems)
- Compatible with Optimo 1.4x and 2x extenders
– 30-76+ext.1.4x = 42-106mm at T4 ; 30-76+ext. 2x = 60-152mm at T5.6 - Superb image quality from open aperture, considered as “variable primes”
- Adapted to extreme production environments (back focus temperature compensation system from -20°C to +45°C)
- Available in PL mount. Easily interchangeable to Panavision PV, Canon EF mounts

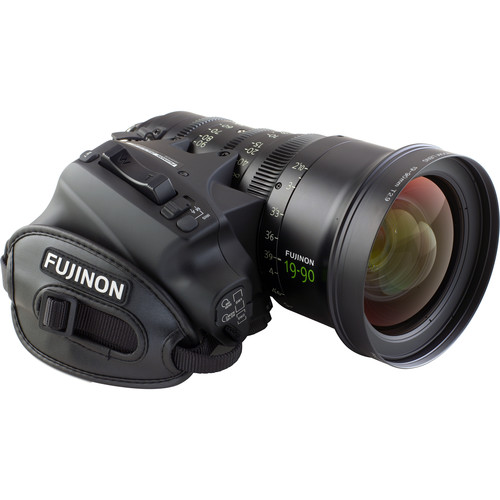

Fujinon 19-90 Cine Zoom

19-90 Cabrio
The Fujinon 19-90mm T2.9 Cabrio Premier PL Lens is a wide to telephoto zoom lens for Super 35mm cameras. The focus, zoom, and iris barrels are geared with standard 0.8 film pitch, which provides an interface for the removable ENG-style digital drive unit. The rear PL mount features electrical contacts for sharing Arri LDS and Cooke /i Technology lens data with the camera.
The detachable drive unit is an ENG-style hand grip with a zoom rocker switch, 16-bit encoding, and an interface for remote control via a wired or wireless controller from Fujinon or other compatible, third party manufacturers. When the drive unit is attached to the lens, a digital auto-aligning system quickly and accurately calibrates it to the zoom, focus, and iris gears. Power is provided by either an external connector or the PL mount’s “hot shoe” interface. Included with the lens is a 111mm clear protection filter that helps to protect the front of the lens.
- T2.9 to T22 aperture with 9 iris blades for attractive bokeh
- The 31.5mm diameter image circle covers up to Super 35mm sensors
- Detachable, ENG-style, digital drive unit with zoom rocker switch
- Industry standard 0.8 film pitch gears for focus, zoom, and iris control
- Power and data/control connections to the camera via the rear PL mount “hot shoe”
- 16-bit encoding supports sharing LDS and /i Technology lens data with the camera
- The barrel markings in metric or imperial measurements are switchable in the field
- Glow-in-the-dark barrel markings make it easier to read measurements
- 200° focus barrel rotation and 120° zoom rotation
- No shims are required to adjust the flange focal distance
- Macro focus function available

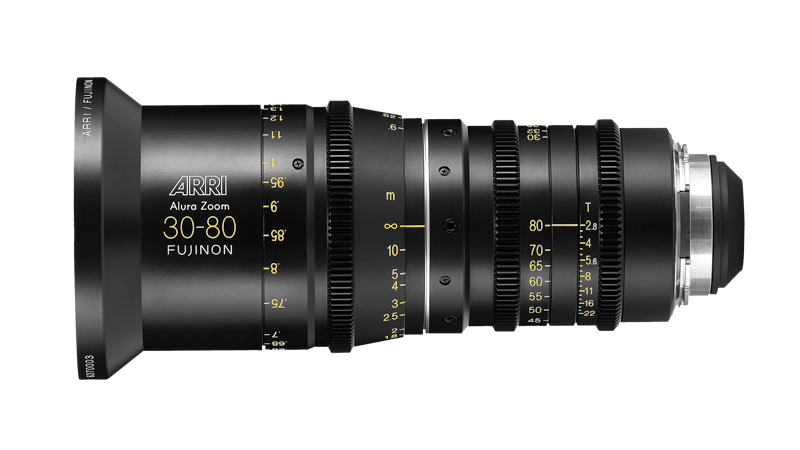

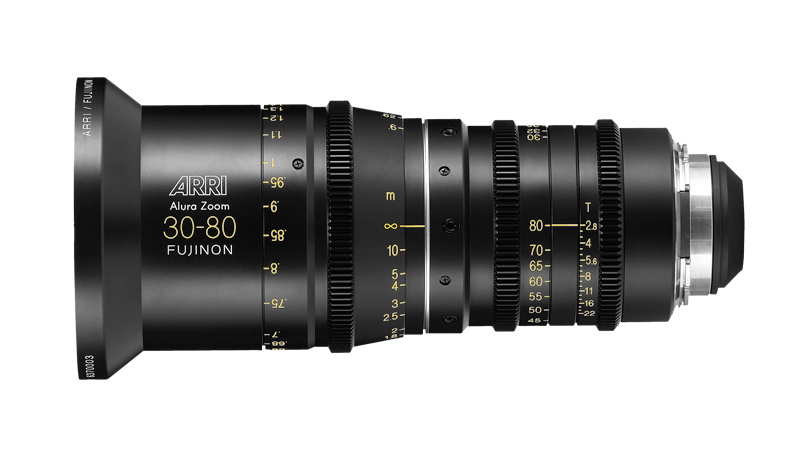

Fujinon 30-80 Allura Cine Zoom

30-80 Allura
The Alura Zooms’ color characteristics, as well as their handling, are matched to existing prime lenses in ARRI’s outstanding repertoire. With the addition of these zooms, ARRI now offers the widest range of cine lenses for all professional production demands, including zooms, high speed primes, standard speed primes, extreme wide angle and telephoto primes, macro, extenders and diopters.
Main Features:
- Matched Zooms
- Matched wide and long PL mount zooms for an
efficient shooting pace - Small size and low weight for quick and easy handling
on the set - Optimized for digital and compatible with film cameras
- Also available as a 3D matched pair
- Matched wide and long PL mount zooms for an
- ARRI Lens Data System
- Automatically provides lens metadata
- Increases efficiency of VFX and 3D post
- Fast and Steady
- T2.8
- Consistent aperture over entire zoom range
- Outstanding Optical Performance
- High resolution for 2K to 4K+ camera outputs
- High contrast through minimized flares and veiling glare (FUJINON multi-layer EBC coating)
- Greatly reduced chromatic aberration through the use of extraordinary dispersion glass
- Large image circle of 31.5 mm covers all current digital cameras
- Low geometric distortion and even field illumination
- 9 iris leaves for round, out-of-focus highlights and a pleasing,
organic bokeh - Consistent contrast, resolution and field illumination across the whole focus and zoom range
- Matched to all other ARRI zoom and prime lenses
- Consistent Optical Performance
- Consistent contrast, resolution and field illumination across
the whole focus and zoom range
- Consistent contrast, resolution and field illumination across
- Film Style Ergonomics
- Compatible with film and digital ARRI cameras and accessories
- Robust construction
- Large, easy-to-read precision focus scales on both sides
- Matched to existing prime lenses
- Easy Servicing
- Feet/meter focus scales can be exchanged
- Zoom centering mechanism
