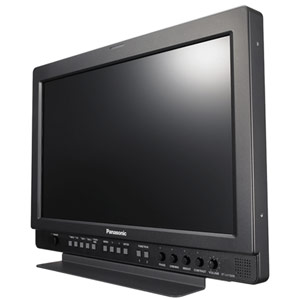

Panasonic BT-LH1710 (Field Monitor)

Daily $

Panasonic BT-LH1710 (Field Monitor)

High-speed response – no blurring thanks to our overdrive circuit

Industry’s lowest delay – Image Processing Circuit (I/P conversion algorithm)

Waveform monitor – a superimposed function that graphically displays luminance levels from zero to 110 IRE in any of the monitor’s four corners

Freeze frame / split screen – frame grab for scene comparison and critical color matching

Two dual-rate SDI HD or SD inputs – (one with Thru-Out) with auto sensing

Component Input on BNC connectors – Y Pb Pr and PC RGB inputs

Faithful color reproduction – closely matches chromatic ranges of CRT monitors

Diagonal line compensation – smoothes out jaggies for improved SD response

WXGA resolution (1280 x 768)

176 degree viewing angle up/down and left/right

One-piece design – no umbilical cord or separate AC power supply

Frame marker lines – 4:3 16:9 2.35:1 or background shading at 0% 50% or 100%

Amplified stereo speakers – two RCA pin jacks input or optional de-embedded audio on SDI

AC or DC power – 117 Volt AC or 12 Volt DC inputs (4-pin XLR)

Color temperature selection – D9300K / D6500K / D5600K / User Settable

CineGammaTM (FILM-REC) compensation – expressly for VariCam monitoring

GPI and RS-232C ports for external control

Preset / manual picture adjustments with indicator lights

Desk stand included

TV Logic 5.6 (Onboard)

Daily $

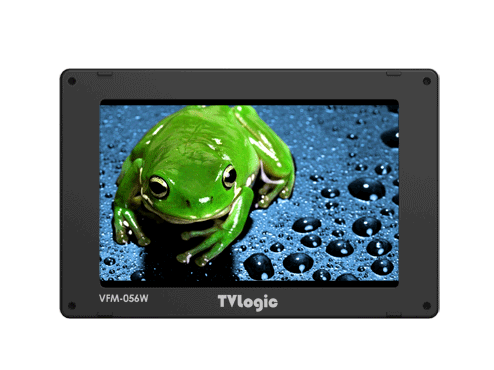

TV Logic 5.6 (Onboard)
The VFM-056WP is available in two configurations and is ideal for HD-SLR production. A 6″x 4″x 1″ lightweight magnesium-alloy case houses a 5.6” 1280×800 LED backlit LCD display with a full complement of preferred eatures, including DSLR Scale, Focus Assist, Various Scan Models, Markers, Audio Level Metering with speaker, Time code Display, HDMI loop out via HD-SDI(720p), WaveformVector Scope, Y Level Check and Range Error Check.

Small HD 702 (Onboard)

Daily $

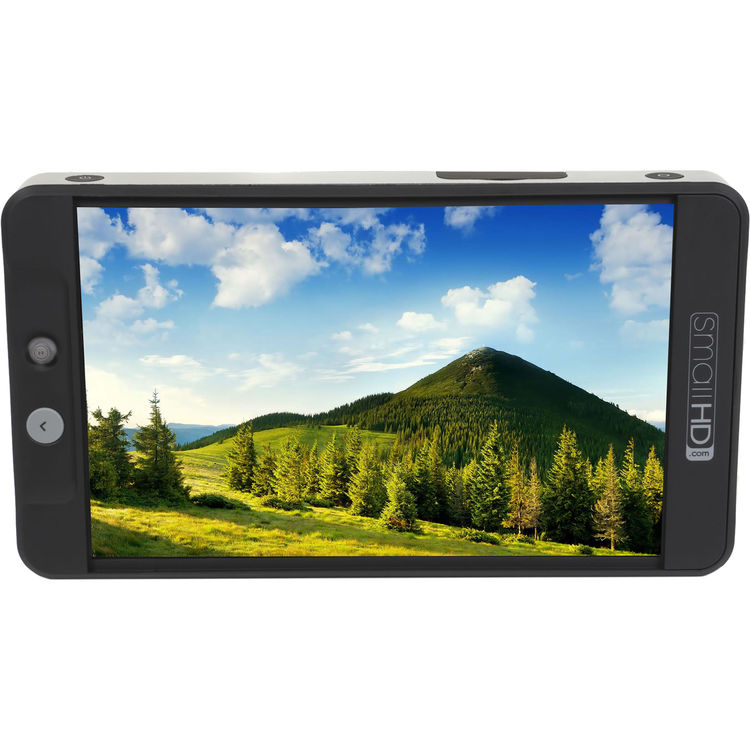

Small HD 702 (Onboard)

Small HD 702

  • 7″ Daylight Viewable 1080p Display
  • 1000 cd/m² Brightness
  • 1000:1 Contrast; 179° Viewing Angle
  • Bonded Glass; Anti-Reflective Coating
  • Waveform, Custom LUTs, De-Squeeze & More
  • HD-SDI and HDMI Inputs and Outputs
  • Dual L-Series and LP-E6 Battery Support
  • Headphone Jack
  • 12 Switchable Pages of Favorite Features
  • Aircraft Grade Aluminum Unibody

Small HD AC7 (Onboard)

Daily $

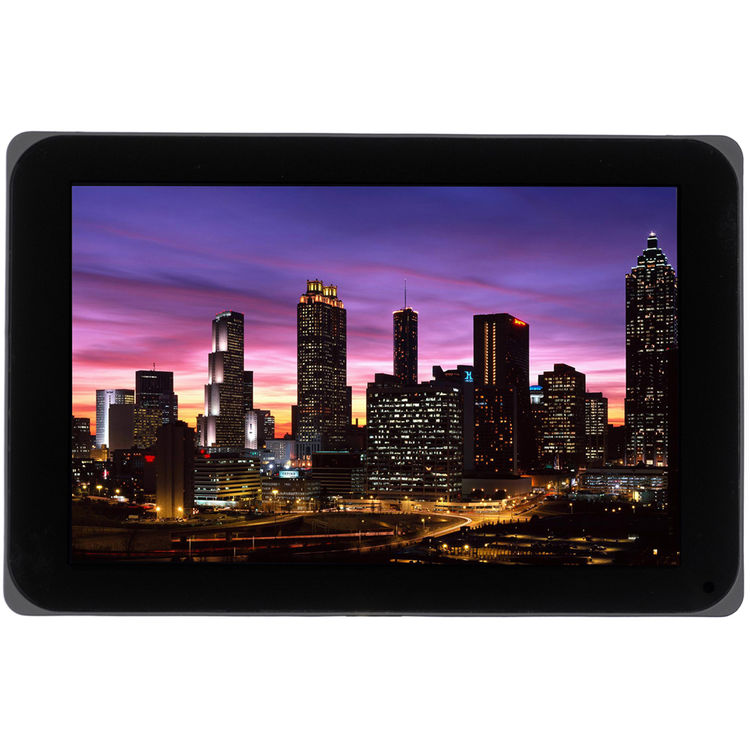

Small HD AC7 (Onboard)

Small HD AC7

  • Rich-Color 7.7″ OLED Display
  • Produces True Blacks, High Color Gamut
  • Gorilla Glass Screen
  • 1280 x 800 Resolution
  • SDI, HDMI, Analog Inputs; SDI Output
  • Focus, Exposure, and Framing Tools
  • Push-In Scroll Wheel Menu Control
  • Two Assignable Function Buttons
  • Weighs Less than 1 lb
  • Supports V-Mount/Gold-Mount/DV Brackets

Small HD 502 (Onboard)

Daily $

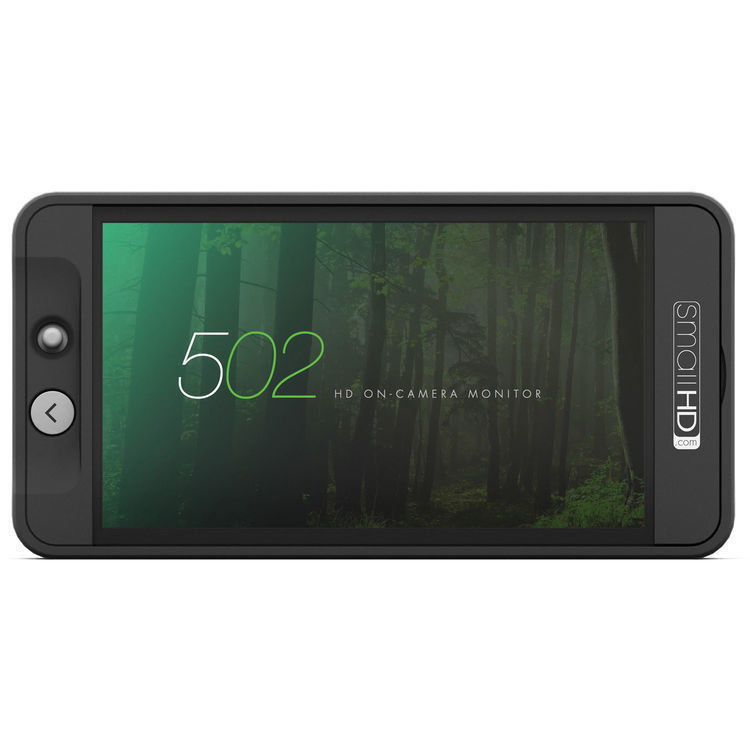

Small HD 502 (Onboard)

Small HD 502

  • 5″ 1920 x 1080, HDMI & SDI Monitor
  • 441 Pixels-Per-Inch Display
  • HD Scopes
  • HDMI & SDI In/Out with Cross Conversion
  • 3-Second Boot Time
  • User Definable Presets
  • Discrete Display/Output 3D LUT Support
  • Joystick Menu Navigation
  • Compatible with Optional Sidefinder
