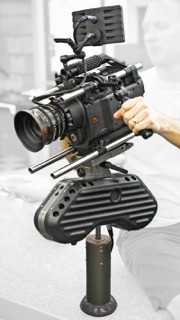

Tyler Mini-Gyro

Daily $

Tyler Mini-Gyro
Tyler Minigyro Stabilizing Camera Mount
is one of the first stabilizing camera mounts to go from one shooting platform, i.e. helicopter to another such as, car, motorcycle, ATV, etc., in one easy set up format. The latest Tyler stabilizing camera mount with great versatility. It’s compact size makes it the perfect choice for working in tight spaces.
Some features of the Tyler Minigyro stabilizing Camera Mount:
variable position handles, camera quick release mounting plate, adjustable tilt head for shooting up or down and specially developed shock tube to eliminate vibration and support the Minigyro and camera package. There are 2-Kenyon K-8 gyros which provide opposing forces to enhance a smooth shot.  The Minigyro runs on 24 -28 volt battery.

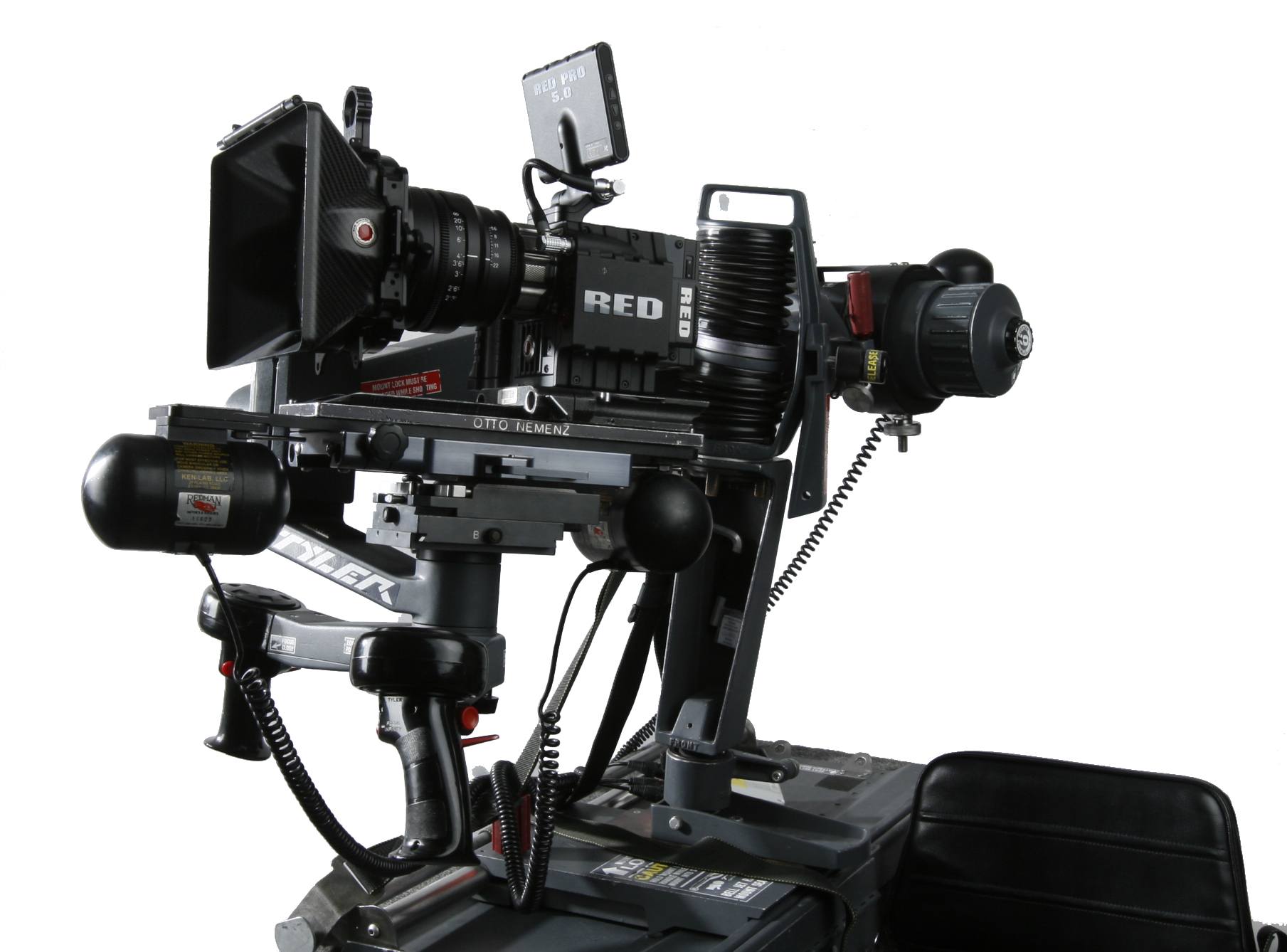

Tyler Middle Mount II

Daily $

Tyler Middle Mount II

The middle mount is a side mount designed for all but the largest of camera packages. It provides 100 degrees of pan, tilt and roll, making it ideal for air to air, air to ground, scenic aerials or fast action sequences. Straight forward tracking shots can be made by crabbing the helicopter, though wind conditions may not always make this possible.

With its counterbalanced free-floating and gyro-stabilised mount arm, the middle mount helps deliver stable and dynamic images. The operator sits within with the mount and has direct ‘hands on’ control, giving a natural ‘organic’ feel to camera moves.

Tyler Nose Mount

Daily $

Tyler Nose Mount

FAA / STC Approved For:

Eurocopter AS350 / AS355 (Astar  / TwinStar)

Bell 206 / 206L (Jet Ranger / Long Ranger)

Optimum Camera Types

Red – Alexa – Panavision

DSLR, and Any Industrial Video Camera



             Max. Camera Wt:  39 lb..         Focal Range: Wide to Medium

             Install Time: 60 minutes           Point of View: Front (for to aft)

             Movement: Tilt 200 degrees     Stabilization: Fixed

Additional Features

Five inch color LCD NTSC Monitor (PAL also available)

Digitally controlled frame rates from 6-100 fps including 29.97 fps.

Counter

Iris Control

Night Lights for illuminating the Control Panels

Cineped Rotational Slider

Daily $

Cineped Rotational Slider

Includes:
(1) Camera slider – 3.5ft rotational
(1) Cineped Quattro/ 4leg
(1) 100mm adapter for fluid head
(1) 150mm adapter for fluid head
(2) Carrying Cases

* Fluid head is not included.

To learn more click here.

8 Ball Slider

Daily $

8 Ball Slider

• Precision CNC Milling.

• All Hi-quality 6061 Billet Aluminum.

• Quiet Tracks. So you can record sound.

• Over Travel Magnets.

• 3/8-16 Threaded holes down sides and end caps.

• Very Rigid Design max weight 190lb.

• Rotating pan mount with a smooth pan brake.

• Complete slider is Hard Anodized.

• Rotating pan mount is set on 2 tapered roller bearings and the spindle is made from Billet 1144 stress proof steel.

Modern Studio 3 Foot Slider

Daily $

Modern Studio 3 Foot Slider

• 3 Foot Modern Slider

• 75mm Ball

• 100mm Ball

• 150mm Ball

• 2 Slider Bridgeplates

• Road Case



Micro Scorpio Head

Daily $

Micro Scorpio Head

The Micro Scorpio Head is the smallest member of our family, designed to fill a blank in the market to offer a light and compact head with a very good quality of movements and possibilities. Comparing with the other Scorpio Heads, we have simplified the mechanics (cables instead of HD slip rings) and the electronics (one main servo boards for both axes instead of one of each per axis and smaller driver boards) but without giving up the quality of movement and the payload capacities of the Scorpio products, the motors are the same that we use with the Mini Scorpio. This way we are not only able to reduce the cost and the price but also reducing the weight and dimensions. The head weights 6kg with a payload of 12kgs/27lbs with the smallest configuration or up to 25kgs/56lbs when mounting the cage and as per its modular design with the possibility to make it bigger, smaller, work over-slung, under-slung, inside position, outside position, centre position, offset position and many more….



Weight: 6Kg. /13,2lb.
Max. payload: 12Kg./26,45lb.
Max. payload with cage: 25Kg./56lb.
Max. speed: 2,4s/rev.
Power from battery or power supply: from 24V to 35V
Connection for Scorpio Focus and other lens control systems

Hot Gears Lambda Package

Daily $

Hot Gears Lambda Package

Salamati Productions has designed one of the industry’s best and most popular remote head options. Built around the immensely popular Cartoni Lambda fluid head, this wheels driven system is a 2 axis, digitally precise motion control ready system with full repeat-ability.

When you can’t be there, Hot Gears can take over with minimum down time, no learning curve, and no technician.

Wanna know more about HotGears?

Additional gear you may require:

* Lens control system

* Remote camera on/off

* Monitor

Hot Gears Arri Geared Head Package

Daily $

Hot Gears Arri Geared Head Package

Salamati Productions has designed and built the ultimate time saver in quick remote head deployment. Constructed around the highly regarded Arri Geared Head 2, this wheels driven system is a 2 axis, digitally precise, motion control ready system with full repeatability and 4-direction, soft-stop limiter options.

When you can’t be there, Hot Gears can step in with minimum down time, no learning curve, and no technician.

Wanna know more about HotGears?

Additional gear you may require:

* Lens control system

* Remote camera on/off

* Monitor

Talon Head

Daily $

Talon Head

This light weight remote head can move cameras up to 30 lbs through 540 degrees of travel–tilt and pan.

* Soft Stop limiters — keeps you in bounds.

* Memorize and repeat moves.

* Precision movement.

* Joystick operation.

* Mini Mitchell base.

Intel-A-Jib™

Daily $

Intel-A-Jib™

Among the many features that differentiate the Intel-A-jib™ from the competition is the one-piece X-Box Extrusion modular beam. This design element offers superior anti-deflection and anti-distortion of the arm. The Intel-A-Jib; sets up in less than two minutes without any tools due to the innovative V-Lock component connector locking system. With extensions of either 10 or 6 feet in length, the Intel-A-Jib™ can accept virtually any camera package, expanding great image-making creativity.
The Intel-A-Jib™ uses the internationally accepted Mitchell Mounting System to interface with the support tripod system and for camera mounting.
There are many accessories designed to expand the jib arm’s capability and functionality. Mounting the Intel-A-Jib™ to Matthews MT-1 Heavy-Duty Tripod and the DL-7 Dolly (sold separately) allows the operator to quickly and easily position the fixture thereby ensuring many more opportunities to capture that ‘perfect’ shot.



GENERAL SPECIFICATIONS

Min Reach 6′ (1.83 Meters)
From center of fulcrum pivot point, to center of 7″ Mitchell mount
Max Reach 10′ (3.10 Meters)
From center of fulcrum pivot point, to center of 7″ Mitchell mount
Max Camera Package Load Capacity      120lbs at 6″ (54.43kg at 1.83m)
80lbs at 10′ (36.29kg at 3.10m)
Overall Assembled Length 9’7″ at 6′ (2.96m at 1.83m)
13’8″ at 10′ (4.21m at 3.10m)
Weight at Full Extension (less counterbalance weight) 65lbs at 10′ (28.48kg at 3.10m)
Counterbalance Weight to Load Ratio 1.8:1 at 6′ (1.83m)
3.0:1 at 10′ (3.10m)
Camera Mount Options Over/Under 7″ Mitchell (flat-base)
Intel-A-Jib Mounting Requirements Dolly, tripod, or other, with 7″ Mitchell mount
(rated for weight of jib, camera package and counterbalance weight)
DISTINCTIVE FEATURES

Set Up Time Under two minutes
Construction Machined/extruded aluminum and stainless steel
Finish Black anodize and powder coat
Arm Extrusion Design One Piece X-Box Extrusion for superior
anti-deflection and anti-torsion properties
Arm Section Connectors V-Lock Connector for fast secure assembly
Arm Sections Included One main arm for 6′ reach, one extension arm for 10′ reach
Counterweight Style Standard 1″ barbell
Additional Distinctive Features Camera platform level adjustment, fine tuning weight,
high visibility dual bubble levels, tilt and pan brake,
fits in two optional cases

Aero-Jib

Daily $

Aero-Jib
  • Quick Set Up Time
  • Weather Proof
  • Adjustable Drag for Pan and Tilt
  • Movable Counter-Weight
  • Camera can be top mounted or underslung

The Aero-Jib is a fully featured jib arm, that can adjust size quickly. From 5′ to 10′ in minutes to fit fast paced locations and sets.

Call us with any questions!



Giraffe Crane Package (With Trailer)

Daily $

Giraffe Crane Package (With Trailer)

This crane is modular and flexible. Fast and versatile, the Giraffe Classic Crane does not need any bracing. It is the best all terrain crane. The tapered sections nest inside each other, making it easily transportable, in light vans, small airplanes, helicopters and boats. Can be hand-carried up mountains and hard-to-reach locations.

Enlouva Crane (With Trailer)

Daily $

Enlouva Crane (With Trailer)

The Enlouva is a very versatile location crane that features a modular design that can be assembled by two people in less than 15 minutes and offers lens heights of negative ground level to more than 19 feet. Constructed of aircraft quality aluminum, stainless steel, and assembled with precision bearings, this crane weighs less than 350lbs. A hydraulic dampening system virtually eliminates Boom Whip in both the pan and tilt axis. Mounting options include Fisher 10 dolly platform, castors, and the Cinemotion Insert / Camera Car.

  • Maximum camera height mounted on the camera car 19′ 5″
  • A Fisher 10 dolly is required for dolly moves. The crane is detached from the camera car (10 min) and mounts on the dolly.
  • Maximum lenght from post 13’6″
  • Minimum length from post 7’6″

Fisher 10 Dolly

Daily $

Fisher 10 Dolly

Specifications

 Max. lift beam elevation with Standard Level Head (SLT) 62.625 inches(159.068 cm)
   Min. lift beam elevation with Standard Level Head (SLT) 13.75 inches (34.925 cm)
   Min. lift beam elevation with Low Level Head (LHT) 3.125 inches (7.938 cm)
   Vertical beam travel 46.875 inches (119.063 cm)
   Lift capacity 500 pounds (226.8 kg)
   Length 55.5 inches (140.97 cm)
   Width 26.5 inches (67.31 cm)
   Height (operating) 38.625 inches (98.108 cm)
   Height (folded) 25 inches (63.5 cm)
   Minimum turn radius (round steering) 22 inches (55.88 cm)
   Minimum turn radius (conventional steering) 44 inches (111.76 cm)
   Carrying weight 420 pounds (190.51 kg)
   Maximum Dolly load capacity 1200 pounds (544 kg)
   Lifts per system charge 7

Fisher 11 Dolly

Daily $

Fisher 11 Dolly

Specifications

   Max. lift beam elevation with Standard Level Head (SLE) 51.125 inches (129.858 cm)
   Min. lift beam elevation with Standard Level Head (SLE) 13.75 inches (34.925 cm)
   Min. lift beam elevation with Low Level Head (LHE) 3 inches (7.62 cm)
   Vertical beam travel 33.375 inches (84.773 cm)
   Lift beam capacity 200 pounds (90.72 kg)
   Length 40 inches (101.6 cm)
   Width – fully operational steering (wheels in) 20.375 inches (51.753 cm)
   Width – fully operational steering (wheels out) 25.75 inches (65.405 cm)
   Height (operating) 39.625 inches (100.648 cm)
   Height (folded) 23.125 inches (58.738 cm)
   Minimum turn radius (round steering) 16.188 inches (41.116 cm)
   Minimum turn radius (conventional steering) 33.5 inches (85.09 cm)
   Carrying weight 307 pounds (139.25 kg)
   Maximum Dolly load capacity 900 pounds (408.23 kg)
   Lifts per system charge 7



Fisher Skateboard Wheels (Centipede)

Daily $

Fisher Skateboard Wheels (Centipede)

Caution: Use proper lifting techniques when lifting dolly.

The Skateboard Wheels incorporate articulating trucks allowing all 32 wheels to maintain contact with the track for better control and stability, on both straight and curved round track. Wheels are precision ground for smoother, quieter operation. Skateboard Wheels work with all J.L. Fisher Dollies and Jib Arms, including the Model 23 Jib. Maximum weight on the Skateboard Wheels is 2000 lbs.

Fisher Center Mount

Daily $

Fisher Center Mount

The Center Mount (CM), used on J.L. Fisher Dolly Models 11, 10 and 9, supports jib arms, lightweight camera booms and counterbalanced camera cranes. The Center Mount has thumbscrews for four-way leveling adjustment and a leveling indicator. Easily installed, the Center Mount has a standard Mitchell mount and comes with a heavy duty 12-inch Riser (R12).

The maximum gross load capacity is 900 pounds (409 kg). Center Mount is not for supporting personnel or personnel carrying cranes.

Fisher Pneumatic Wheels

Daily $

Fisher Pneumatic Wheels

Pneumatic Wheels (8)
Each dolly has eight Pneumatic Wheels as standard equipment. These Wheels have polyurethane-covered rubber pneumatic tires, concentrically ground for smooth, steady performance. The model 11 Dolly uses 8.87 inch diameter wheels. The model 9 Dolly uses 10.84 inch diameter wheels. The model 10 dolly uses a combination of 8.87 and 10.84 inch diameter wheels. (Model 10 configuration shown below.)

Fisher Round Track Wheels

Daily $

Fisher Round Track Wheels

The Round Track Wheels (TTW) enable the J.L. Fisher Dolly Model 10 to operate safely, smoothly and easily on Round Straight Track or Round Curved Track. Wheels can be left on the Dolly while shooting on stage flooring and are quickly changed with one screw each.

FilmAir Hi-Load Aluminum Track (American Standard Profile)

Daily $

FilmAir Hi-Load Aluminum Track (American Standard Profile)

Available in 2 to 10 feet.



Hi-load swing fold dolly track is constructed of anodized structural aluminum, and designed to carry maximum loads with minimum deflection. The track rails are flush with the ground, and thus supported along their entire length preventing any flexing between crossbars. The load carrying capacity of this track is rated in excess of two tons fitted with precision machined stainless steel cones and connectors for corrosion proof durability and maintenance free use. This track is light enough to carry to any location but rugged enough to survive the heaviest usage and proven by time to sustain less than 20% of damage recorded on heavier steel track.

FilmAir 90 Degree Curved (American Standard Profile)

Daily $

FilmAir 90 Degree Curved (American Standard Profile)

The hi-load curved dolly track is constructed of anodized structural aluminum and designed to carry maximum loads with minimum deflection. Flexing between crossbars is prevented as the rails are in contact with the ground along their entire length. Therefore, the load carrying capacity is rated in excess of two tons. Four of these curved sections are needed to make up a circle, which has a 14 ft. (4.2 m) outside diameter.

Super PeeWee 3 Standard Package

Daily $

Super PeeWee 3 Standard Package
Specifications
Maximum Camera Mount Height (Position 1 – 90 degrees Mode 4 ft. 11.75 in. 1.54 m
Minimum Camera Mount Height (Position 1 – 90 degrees Mode) 29.5 in 79 cm
Vertical Boom Travel (Position 1 – 90 degrees Mode) 30.25 in 77 cm
Maximum Camera Mount Height (Position 2 – 45 degrees Mode) 4 ft. 9.5 in. 1.48 m
Minimum Camera Mount Height (Position 2 – 45 degrees Mode) 25.5 in 65 cm
Vertical Boom Travel (Position 2 – 45 degrees Mode) 32 in 81 cm
Maximum Camera Mount Height (Position 3 – Low Mode)( 4 ft. 2.5 in. 1.28 m
Minimum Camera Mount Height (Position 3 – Low Mode) 19.25 in 48 cm
Vertical Boom Travel (Position 3 – Low Mode) 31.25 in 82 cm
Maximum Camera Mount Height (Position 4 – Extender Mode) 4 ft. 11 in. 1.49 m
Minimum Camera Mount Height (Position 4 – Extender Mode) 20.75 in 53 cm
Vertical Boom Travel (Position 4 – Extender Mode) 38.25 in 97 cm
Min. Camera Mt Height (Low Bar/Lowest 4-Way Leveling Head) 5 in 12 cm
Max. Camera Mt Height (Low Bar/Lowest 4-Way Leveling Head) 36 in 91 cm
Maximum Payload* 250 lb 113 kg
Maximum Payload with High Post Kit** 1,100 lb 499 kg
Maximum Boom Lifts (Fully Charged) 4 Lifts
Maximum Boom Lifts (Fully Charged) 43 in 1.09 m
Chassis Minimum Length (Wheels Fully Retracted) 34.5 in 88 cm
Minimum Chassis Height for Transportation 16 in 41 cm
Chassis Width – Legs at 0 degrees Position 20 in 51 cm
Chassis Width – Legs at 17 degrees Position 23.5 in 60 cm
Chassis Width – Legs at 45 degrees Position 28.5 in 71 cm
Chassis Width – Legs at 90 degrees Position 32 in 81 cm
Steering Post Height 35 in 89 cm
Minimum Turn Radius 24 in 61 cm
Min Door Width PeeWee Can Be Carried Through 16 in 41 cm
Accumulator Charging Time (Empty to Full) 60 sec.
Carrying Weight 295 lb 134 kg
Operational Weight 329 lb. 149 kg
Operational Weight with High Post Kit (No Payload) 386 lb 175 kg



Super PeeWee 4 Standard Package

Daily $

Super PeeWee 4 Standard Package
Specifications
Maximum Camera Mount Height (Position 1- 90 degrees Mode) 5 ft. 0.5 in. 1.53 cm
Minimum Camera Mount Height (Position 1- 90 degrees Mode) 27.25 in 69 cm
Vertical Boom Travel (Position 1- 90 degrees Mode) 33.25 in 84 cm
Maximum Camera Mount Height (Position 2 – 45 degrees Mode 4 ft. 10.5 in. 1.48 m
Minimum Camera Mount Height (Position 2 – 45 degrees Mode) 26 in 66 cm
Vertical Boom Travel (Position 2 – 45 degrees Mode) 33.25 in 84 cm
Maximum Camera Mount Height (Position 3 – Low Mode) 4 ft. 3.5 in. 1.3 m
Minimum Camera Mount Height (Position 3 – Low Mode) 19 in 48 cm
Vertical Boom Travel (Position 3 – Low Mode) 33.25 in 84 cm
Maximum Camera Mount Height (Position 4 – Extender Mode) 5 ft. 0.5 in. 1.53 m
Minimum Camera Mount Height (Position 4 – Extender Mode) 19 in 48 m
Vertical Boom Travel (Position 4 – Extender Mode) 41.25 in 1.05 m
Min. Camera Mt Height (Low Bar/Low 4-Way Leveling Head) 4.5 in 11 cm
Max. Camera Mt Height (Low Bar/Low 4-Way Leveling Head) 3 ft. 1 in. 94 cm
Chassis Width – All Legs at 0 degrees (Use in Tight Quarters) 20 in 51 cm
Chassis Width – All Legs at 10 degrees (Pneumatic or 880mm Pos) 25 in 64 cm
Chassis Width – All Legs at 45 degrees (Track Pos) 28 in 71 cm
Chassis Width – All Legs at 70 degrees (Tread & Wheel Base Equal) 32 in 79 cm
Chassis Width – All Legs at 84 degrees (Sideways or Scissor Pos) 32.75 in 81 cm
Chassis Width – Front Legs at 84 degrees /Rear at 0 degrees (3 Point Med Tire) 32.75 in 81 cm
Chassis Width – Front Legs at 84 degrees /Rear at 10 degrees (3 Point Pneu) 32.75 in 81 cm
Chassis Width – Front Legs at 180 degrees /Rear at 0 degrees (Med Tire) 20 in 51 cm
Chassis Width – Front Legs at 170 degrees /Rear at 10 degrees (Compact Pneu) 25 in 64 cm
Steering Post Height 35 in 89 cm
Minimum Chassis Length 2 ft. 10 in. 87.6 cm
Maximum Chassis Length 3 ft. 10 in. 1.09 m
*Maximum Payload with Accumulator Charge at 2,400psi 320 lb 145 kg
*Maximum Payload with Accumulator Charge at 2,600psi 350 lb 159 kg
**Maximum Payload with High Post Kit 1,100 lb 499 kg
Maximum Number of Lifts on a Single Charge 5 lifts
Accumulator Charging Time (Empty to Full) 60 sec
Carrying Weight 295 lb 134 kg
Operational Weight 329 lb 149 kg
Operational Weight with High Post Kit (No Payload) 386 lb 175 kg



Doorway Dolly

Daily $

Doorway Dolly
