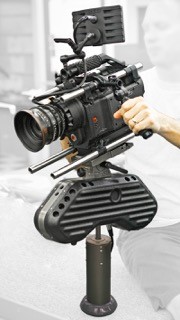

Tyler Mini-Gyro

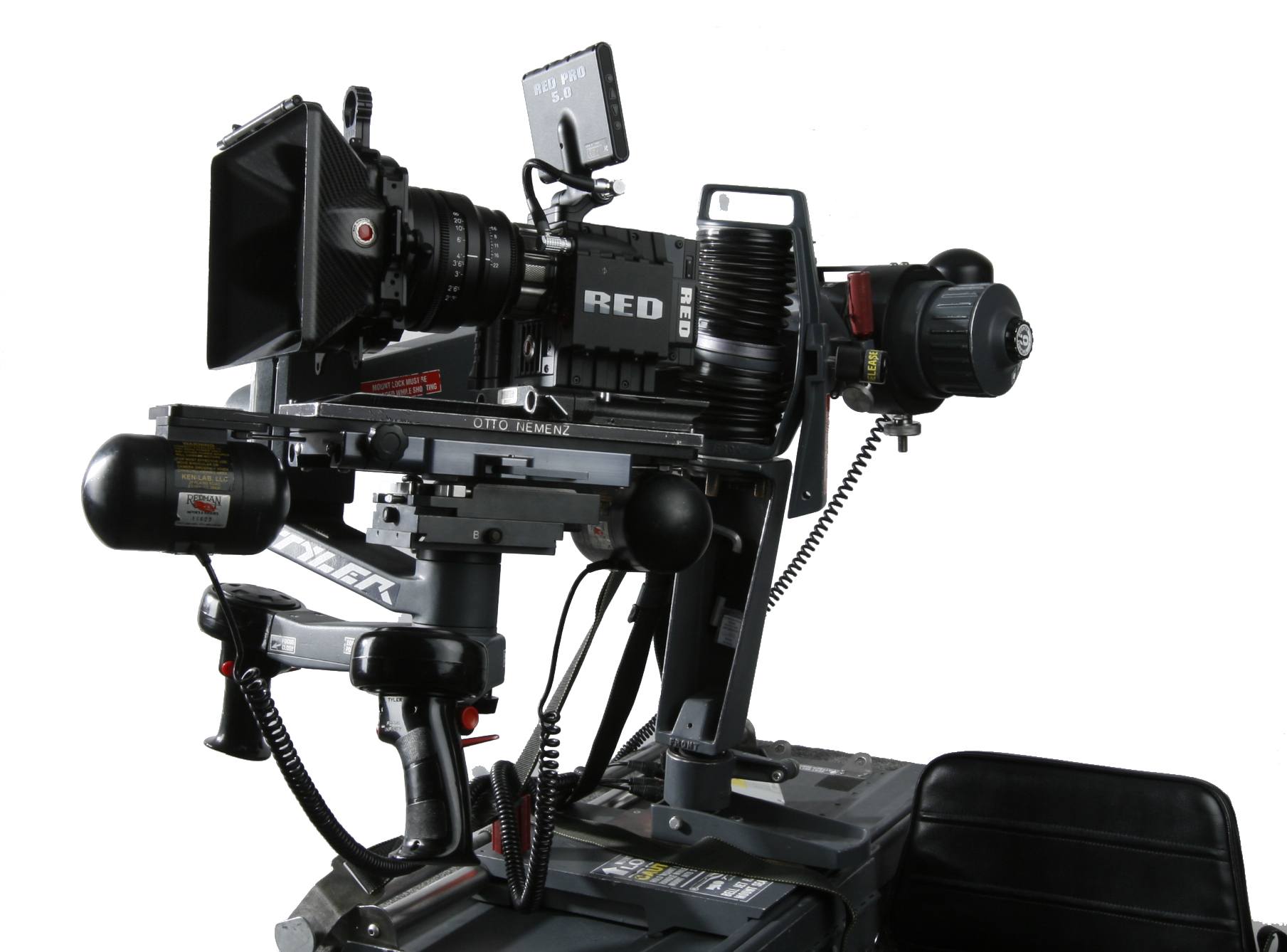

Tyler Middle Mount II

The middle mount is a side mount designed for all but the largest of camera packages. It provides 100 degrees of pan, tilt and roll, making it ideal for air to air, air to ground, scenic aerials or fast action sequences. Straight forward tracking shots can be made by crabbing the helicopter, though wind conditions may not always make this possible.
With its counterbalanced free-floating and gyro-stabilised mount arm, the middle mount helps deliver stable and dynamic images. The operator sits within with the mount and has direct ‘hands on’ control, giving a natural ‘organic’ feel to camera moves.

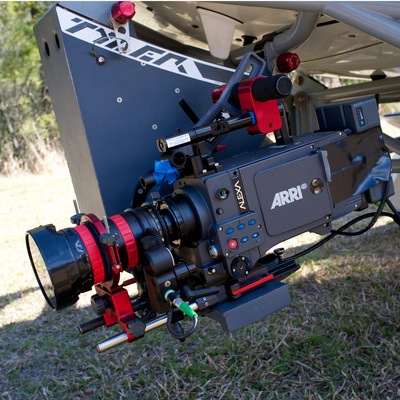

Tyler Nose Mount

FAA / STC Approved For:
Eurocopter AS350 / AS355 (Astar / TwinStar)
Bell 206 / 206L (Jet Ranger / Long Ranger)
Optimum Camera Types
Red – Alexa – Panavision
DSLR, and Any Industrial Video Camera
Max. Camera Wt: 39 lb.. Focal Range: Wide to Medium
Install Time: 60 minutes Point of View: Front (for to aft)
Movement: Tilt 200 degrees Stabilization: Fixed
Additional Features
Five inch color LCD NTSC Monitor (PAL also available)
Digitally controlled frame rates from 6-100 fps including 29.97 fps.
Counter
Iris Control
Night Lights for illuminating the Control Panels
